Linksys EA7300 MAX-STREAM AC1750 is the replacement router from the old D-Link 655

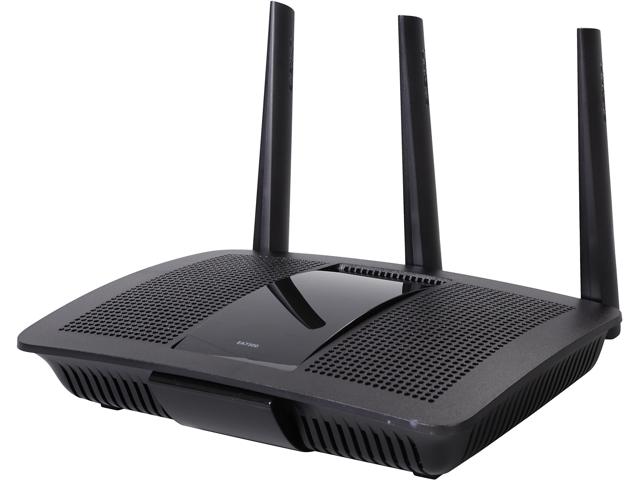

33-124-633-06

Linksys EA7300 MAX-STREAM AC1750 Emulator

Max-Stream™ ac1750 – Linksys Manual – PDF

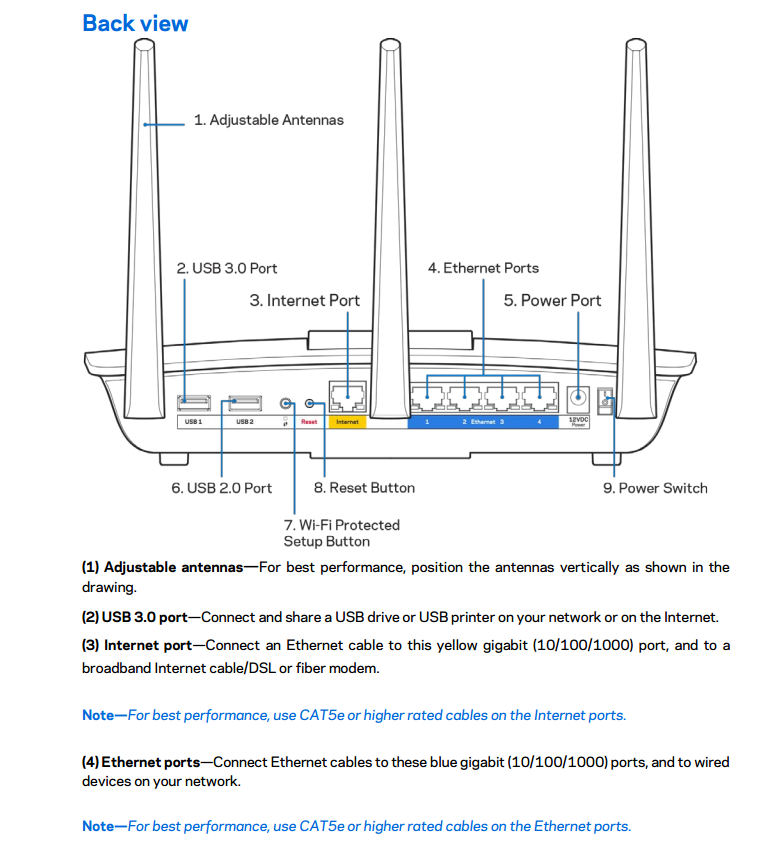

back

678

Key Features and Benefits

  • Next-Gen AC:
    Multi-User MIMO technology allows multiple users to access multiple devices on your network without lag or buffering.
  • Dual-Band (5 GHz + 2.4 GHz):
    Two independent, dedicated Wi-Fi bands that deliver combined speeds of up to 1.7 Gbps.*
  • 3×3 AC:
    Three simultaneous streams of data for stronger, faster performance.
  • Advanced Connectivity:
    USB 3.0 port to connect external storage devices or printers and share across your network at speeds 10x faster than USB 2.0. Users can connect other devices like printers and USB flash drives through the USB 3.0 port.
  • Dual-Core CPU:
    Dual-core processor for extremely fast data transfer speeds.
  • Beamforming Technology:
    Focuses Wi-Fi signal to each device on your network.
  • 3 Adjustable Antennas:
    Position antennas for optimal performance.
  • Smart Wi-Fi App:
    Access and control your home network from your mobile device anytime, anywhere.

    • Get real-time info about your Wi-Fi network.
    • Give your guests what they want—access to your Wi-Fi.
    • Control your kids’ Wi-Fi usage.
    • See all the devices connected to your Wi-Fi network.
  • Seamless Roaming†:
    To enable Seamless Roaming, pair a Max-Stream Router with a Max-Stream Range Extender. The intuitive technology lets you move freely in and outside your home without dropping a Wi-Fi signal.*

PROCESSOR
Dual-Core MIPS-based

MINIMUM SYSTEM REQUIREMENTS

  • For Router Setup and Linksys Smart Wi-Fi access: Latest versions of Google Chrome™, Firefox®, Safari® (for Mac® or iPad®), Microsoft Edge, or Internet Explorer® versions 8 or newer
  • For Printer Sharing and User Documentation:
    PC: Wi-Fi enabled, Windows® XP SP3, Windows Vista® SP1 or later, Windows 7, Windows 8, or Windows 10
    Mac: Wi-Fi enabled, Mac OS® X Leopard v10.5.8 or later, Snow Leopard v10.6.1 or later, Lion v10.7, Mountain Lion v10.8, Mavericks v10.9, or Yosemite v10.10
  • User Documentation is also available at: www.linksys.com/support

Specifications

Wireless Standards with Link Rate
IEEE 802.11ac (up to 1300 Mbps for 5 GHz*)
IEEE 802.11n (up to 450 Mbps for 2.4 GHz/5 GHz*)
IEEE 802.11g (up to 54 Mbps*)
IEEE 802.11a (up to 54 Mbps*)
IEEE 802.11b (up to 11 Mbps*)

WIRELESS OPERATING SPECTRUM
Simultaneous Dual-Band
2.4 GHz and 5 GHz

WIRELESS ENCRYPTION
WEP 64/128-bit
WPA2 Personal
WPA2 Enterprise
WPA2/WPA Mixed Personal
WPA2/WPA Mixed Enterprise

VPN PASS-THROUGH SUPPORT
PPTP Pass-through
IPSec Pass-through
L2TP Pass-through

MEDIA SPECIFICATIONS
Media server

MEMORY
128MB Flash
256MB DDR

LED
Power, Internet, Ethernet (1-4),
Wi-Fi Protected Setup

STORAGE FILE SYSTEM SUPPORT
FAT, FAT32, NTFS, and HFS+

POWER ADAPTER
12V/2.5A

PORTS
1x Internet port
4x Gigabit Ethernet ports
1x USB 3.0 port
Power

  • Product Weight (lbs.): 2.65
  • Product Depth (in.): 7.22
  • Product Width (in.): 10.09
  • Product Height (in.): 2.21
  • Unit Weight (lbs.): 1.4 (636g)
  • Unit Depth (in.): 3.69
  • Unit Width (in.): 12.59
  • Unit Height (in.): 9.18
  • Case Pack Quantity (*PL): 2
  • Case Pack Weight (lbs.) (*PL): 6.16
  • Case Pack Length (in.) (*PL): 10
  • Case Pack Width (in.) (*PL): 13.11
  • Case Pack Height (in.) (*PL): 7.95
Package Includes
  • Linksys AC1750 MU-MIMO Gigabit Router, EA7300
  • Quick Start Guide
  • Ethernet Cable
  • Power Adapter
  • Regulatory Information
