Temp spec sheet on the replacement router for the D-Link 655 – The Nighthawk AC 1900 Router

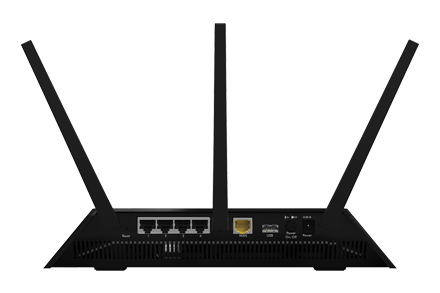

Nighthawk AC1900 Smart WiFi Router Model R7000 Installation Guide
The Specs of the AC1900
- AC1900 Wi-Fi— 600 + 1300Mbps speeds
- 1GHz Dual Core Processor
- Beamforming+ improves range & performance
- High powered amplifiers & antennas to extend your Wi-Fi coverage
- Advanced features for lag-free gaming
- Prioritized bandwidth for streaming videos or music
- Free automatic backup software for Windows PC & Time Machine compatible for Macs
- Manage your home network with Netgear Genie
Model – R7000-100PAS
Brand – NETGEAR
Details
Standards
IEEE 802.11ac, IEEE 802.11a/b/g/n
Security
WiFi Protected Access (WPA/WPA2-PSK)
Double firewall protection (SPI and NAT)
Denial-of-service (DoS) attack prevention
WPA/WPA2
WPA2
WAN Ports – 1 x 10/100/1000M
LAN Ports – 4 x 10/100/1000M
Wireless Data Rates
Up to 1.3Gbps + 600Mbps
Frequency Band
Simultaneous 2.4GHz/5GHz
Antenna
3 x Detachable External Antenna
Interface
USB 3.0, USB 2.0
System Requirements
Microsoft Windows 7, 8, 8.1, Vista, XP, 2000, Mac OS, UNIX, or Linux
Microsoft Internet Explorer 5.0, Firefox 2.0, Safari 1.4, or Google Chrome 11.0 browsers or higher
Dimensions
11.22 x 7.26 x 1.97 in (285 x 184.5 x 50 mm)
Weight
1.65 lbs (750 g)
Features
AC1900 (600 Mbps @ 2.4GHz with 256 bit QAM support + 1300 Mbps @ 5GHz 11ac)
Simultaneous Dual Band WiFi – Tx/Rx 3×3 (2.4GHz) + 3×3 (5GHz)
Beamforming+ – For more reliable connections
Powerful dual core 1GHz processor
High-power amplifiers – three (3) external antennas
Memory: 128 MB flash and 256 MB RAM
Downstream & upstream QoS – automatically recognizes & prioritizes applications
ReadySHARE USB – Share your USB hard drive and printer
IPv6 Support (Internet Protocol Version 6)
Packaging
Package Contents
Nighthawk AC1900 Smart WiFi Router
Three (3) detachable antennas
1 Ethernet cable
Quick install guide
Power adapter, localized to country of sale
